How To Replace Heating Element In Samsung Dryer

How To Replace Heating Element In Samsung Dryer

Spread the love

How To Replace Heating Element In Samsung Dryer? If your Samsung dryer stops heating or does not heat properly, the most likely cause is a faulty heating element. When this happens, it must be replaced. But don’t worry, replacing the heating element in your Samsung tumble dryer is easy and doesn’t take long.

Just follow the steps in this guide to remove the old element and install the new one and your dryer will be up and running in no time. All you need is a screwdriver and a replacement part and you’ll be fine. Make sure to order the correct replacement part from your hardware store or online store*.

This guide covers all major Samsung dryer models, including:

  • DV203AEWXAA
  • DV203AGSXAA
  • DV203AGWXAA
  • DV206AESXAA
  • DV206AGSXAA
  • DV209AEWXAA
  • DV210AEW/XAA
  • DV210AEWXAA
  • DV210AGWXAA
  • DV218AEBXAA
  • DV220AEW/XAA
  • DV330AEW/XAA
  • DV350AEWXAA
  • DV419AEWXAA
  • DV42H5000EW/A3-0000
  • DV42H5200EP/A3-0000
  • DV42H5200EW/A3-0000
  • DV448AEP/XAA
  • DV448AEPXAA
  • DV45H7000EW/A2-0000
  • DV48H7400EW/A2-0000

How To Replace Heating Element In Samsung Dryer?

The first thing to do if you want to replace your heating element is to purchase the new one from Amazon*, and make sure it’s the right model. Then, follow the step below to learn how to replace heating element in Samsung dryer?

Step 1 – Unplug Your Dryer

Begin by removing the dryer from the wall or, if it is wall-mounted, lower it so you can access the heating element. If your dryer has a drain hose, disconnect it. Then turn off the power by unplugging the dryer.

Step 2: Remove the back cover

Once the dryer has been disconnected from the vent and power supply, the next step is to remove the back cover. This is because the heating element is behind it. To remove the cover, unscrew the screws that secure it and cut the panel. Once removed, set it aside and keep the screws in a safe place.

See also  Tinder Advertising 2021 - How To Advertise On Tinder

Step 3: Remove the control panel

The next step is to remove the control panel from your dryer. This can be done by loosening the screws holding them in place and then cutting them off. Be careful not to pull it all the way out as you will need to disconnect the harnesses connecting the panel to the dryer before you can remove it. Once disconnected, move the control panel out of the way and store the screws in a safe place.

Step 4 – Remove the Front Cover

To remove the front cover, open the dryer door and pull out the lint filter/filter. Underneath the filter/siphon are a few screws that need to be removed. Set the filter aside and keep the two screws in a safe place. The front panel should now be removable and you can access the heating element.

Step 5 – Disconnect the Power Connections

Locate the heating element and disconnect the power cables. There should be a total of six terminals. You don’t have to worry about remembering where they are attached to the heating element as they all have a slightly different shape.

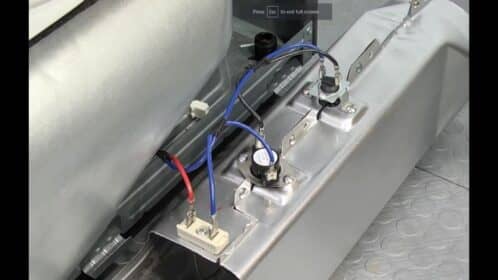

Step 6: Remove the Heating Element

Once the heating clamps are disconnected, your next task is to remove the heating element. This can be done by loosening the screw holding it in place and then pulling the element out. Keep the screw in a safe place as you can use it for the new one. Once the element has been removed, disconnect the thermostat from the element by unscrewing the four screws holding it in place.

Step 7 – Connect Thermostat to New Heating Element

The first task when installing the new heating element in your Samsung dryer is to attach the thermostat to the new element using the four screws you removed earlier. If you have a multimeter, you should test the thermostat to make sure it has continuity. Don’t worry if you don’t have a multimeter, but if the thermostat is faulty, you’ll need to replace it.

Step 8 – Install the New Heating Element

Remove the new heating element from its packaging and snap it into place in your Samsung tumble dryer. You can then secure it in place with the screw you removed earlier, or if your new heating element has one, use the new one. Once secured in place, reattach the wire connectors to the element.

See also  How To Download Tiktok Videos Without Watermark iPhone in 2021/2022

Step 9 – Return the Front Cover

Now that the heating element has been installed correctly, it is time to reassemble the dryer. Start by placing the faceplate on the dryer and securing it in place with the screws you removed earlier. Then you can put the fluff filter/trap back in the dryer.

Step 10 – Return the Control Panel

Once the front bezel is in place, reconnect the control panel wiring harnesses and slide the control panel into place. Secure it in place with the screws you removed earlier. First, make sure the panel snaps onto the dryer.

Step 11 – Return the Top Cover

You can now replace the last cover on top of the dryer and secure it with the screws you removed earlier.

Step 12 – Reconnect the Ventilation and Power

The last step is to reconnect the exhaust hose to the dryer and turn it on. You can now return the dryer to its normal position and turn it on again to test whether the new heating element is working. When the new heating element works, you can start using your Samsung dryer again!

Video on How To Replace Heating Element In Samsung Dryer

This video provides step-by-step repair instructions for replacing the heating element in a Samsung dryer. The most common reasons to replace the heating element are when the dryer won’t heat, gets too hot, takes too long, the switch flips, or won’t stop.

How much will it cost to repair a Samsung dryer in 2021?

The average cost of a dryer repair is $180. On the low end, homeowners can spend $100 while on the high end they can afford $430.

The following factors affect repair costs:

  • Technicians who have to go further or operate a dryer in an inconvenient place will be charged extra.
  • Type of repair. Some parts are more expensive to replace.
  • Model and brand of dryer.
  • Parts for the newer versions are easier to find than for the older model

Cost of a dryer heating element

You should budget at least $170-$280 for a replacement heating element, including materials and labor.

For labor, an appliance technician typically costs between $80 and $100 per hour.

This price also includes a one-time service fee.

Most technicians charge between $50 and $80 for their services.

Frequently Asked Questions on How To Replace Heating Element In Samsung Dryer

Why does the heating element in my Samsung dryer keep cutting out?

Suppose you replaced a burned-out dryer heating element with a new one that also burns out.

See also  How to Fix iPhone Screen moves on its own – Ghost Touch Fixed

If so, your dryer may have insufficient and poor airflow.

Remember that the dryer needs sufficient airflow to prevent overheating of the components, such as the heating element.

Many people do not regularly clean their dryer vents and filters.

As a result, lint builds up, impeding the efficient passage of air.

Your dryer vents, no matter how clean you find them, always need a good cleaning!

Is it worth replacing a dryer’s heating element?

Because replacing a dryer’s heating element can be expensive (depending on where you live, of course), some people choose to buy a new dryer.

So which option should you take? Here’s a good rule of thumb: If the cost of repairing your existing dryer is 50% cheaper than the cost of a new dryer, you should repair it instead of buying a new one.

In other words, if the repair cost is more than half the cost of a new dryer, you might as well pay the difference and buy a new one!

How do you know if your dryer’s heating element is faulty?

The heating element can be visually inspected or tested with a multimeter. Remove your heating element and inspect it under a lamp to make it easier. You may be able to spot cracks or burns on the coils by looking closely at the heating element.

These are all indications that the heating element is faulty. A multimeter can also be used to check continuity and resistance. You can do this by pressing the multimeter probes against the wire terminals of the heating element. If the heating element is still working properly, so should your meter.

How long do Samsung dryer heating elements last?

The heating element in a properly maintained dryer should last at least 15 years. However, a burnt heating element is often responsible for heating problems in Samsung dryers. The element usually burns out due to wear and not keeping the vent clean, which puts pressure on the heating element.

Where to buy Samsung Dryer Heating Element?

You can buy a Samsung Dryer heating element at any electronic store near you. You can also purchase it online from online stores like Amazon*, eBay, Walmart, BestBuy, Aliexpress, Alibaba, etc.
